Go-Kart Axle Kit: A Complete Guide

Go-kart axle kit

A go-kart axle kit is a matched rear-end package: a keyed live axle plus the bearings, hangers or bearing flanges, wheel hubs, sprocket hub, brake hub, keys, and locking collars needed to bolt it into a frame. Buying the kit instead of separate parts guarantees that every bore, key, and bearing fits the same shaft. Most recreational kits use a 1 inch or 1-1/4 inch solid steel axle in a length that sets your rear track width, and typically cost about $90 to $350 depending on size and contents. To choose one, match the diameter to your frame, the length to your stance, and the hub patterns to your wheels, sprocket, and brake. This guide covers exactly that, plus installation step by step.

What Comes in a Go-Kart Axle Kit?

Contents vary by seller, so read the parts list before ordering. A complete kit usually includes:

  • Axle shaft: solid steel, keyed full length or at component locations, with ends machined or drilled for hub retention.
  • Bearings: two or three, often flanged units with locking collars or set screws.
  • Bearing hangers or flanges: the brackets that bolt or weld to the frame and hold the bearings.
  • Wheel hubs: keyed hubs that slide on each end and match a wheel bolt pattern.
  • Sprocket hub: a keyed carrier the axle sprocket bolts to, sometimes with a sprocket included.
  • Brake hub: a carrier for a disc or a drum, depending on your brake.
  • Keys, collars, and set screws: to lock everything in position.

Cheaper “kits” may be just the shaft, bearings, and collars, with hubs sold separately. A kit that looks inexpensive can end up costing more once you buy the missing parts. If you want background on axle types and sizes before buying, our guide to the go-kart axle explains live vs. solid vs. hollow axles, diameters, and keyways in detail.

Types of Go-Kart Axle Kits

Complete recreational kits are the most common. They suit DIY builds, yard karts, and replacements on mainstream frames, and include everything to make a rolling rear end.

Heavy-duty off-road kits use 1-1/4 inch axles, stronger hubs, and sometimes three bearings. They suit heavier karts, two-seaters, larger engines, and karts that jump or hit ruts.

Shaft-and-bearing kits supply only the core rotating assembly. They suit builders who already own hubs and want to replace a bent axle or worn bearings.

Racing axle kits are built around hollow metric axles, commonly 50 mm for adult chassis, with bearing cassettes and magnesium or aluminum hubs. They are usually specific to a chassis brand, and most racers buy direct from the chassis dealer.

The rear axle is not the only axle kit on a kart. If your frame needs a new front end, a go-kart front axle kit covers the spindles and front beam instead.

Best Go Kart Axle Kit: our top 3 picks

ProductBest forKey featuresPriceBuy
CILOYU 44 in 1 in Live Axle KitBest overall for 1 inch builds
  • 1 in solid steel, 44 in long
  • 1/4 in keyway stated
  • Bearings, flangettes, hangers
$77.99as of Nov 17, 2026 12:42 pm ESTBuy now →Check current price
Bruce and Shark 29 in Rear KitBest complete compact rear end
  • 440 lb stated capacity
  • Brake, chain and tyres included
  • 29-1/8 in, 22 mm shaft
$164.99as of Nov 17, 2026 12:42 pm ESTBuy now →Check current price
ROP Shop 36 in Shaft KitBest for drift trikes
  • Includes 10T #420 clutch
  • Aluminium race hubs and slicks
  • 330 lb stated limit
$299.99as of Nov 17, 2026 7:19 am ESTBuy now →Check current price

Prices are Amazon’s listed prices as of the date and time shown and are subject to change; the price on Amazon at the time of purchase applies. As an Amazon Associate we earn from qualifying purchases.

See every pick compared: Best Go Kart Axle Kit →

Go-Kart Axle Kit Types Compared

Kit Type Typical Axle What You Get Best For Typical Cost
Complete recreational 1 in solid, 3/16 in key Shaft, bearings, hangers, hubs, sprocket and brake hubs DIY and yard karts About $90–$200
Heavy-duty off-road 1-1/4 in solid, 1/4 in key As above, stronger parts, often three bearings Off-road, two-seaters, bigger engines About $150–$350
Shaft and bearings only 1 in or 1-1/4 in Shaft, bearings, collars Replacing a bent axle About $50–$130
Racing axle kit Hollow, often 50 mm Axle, cassettes, bearings, sometimes hubs Sprint racing chassis About $200–$500+

These are typical US price ranges and shift with length, steel quality, and brand. Shipping on long axles can add noticeably to the total.

How to Choose a Go-Kart Axle Kit

Most axle kit returns come from a size mismatch. Work through these checks before you order.

1. Diameter

Match the axle diameter to the bearing hangers on your frame, or plan to replace the hangers too. A 1 inch axle handles most stock small engines on a light kart; 1-1/4 inch is the safer choice for off-road use, heavy riders, and higher power.

2. Length and track width

Measure the distance between the outer faces of your bearing mounts, then add the width of each hub and the extra you want for track width adjustment. Common recreational lengths run roughly 30 to 44 inches. Wider rear track generally improves stability; narrower helps the kart fit through gates and trailers. Check that the wheels will clear the bodywork and fenders.

3. Wheel hub pattern

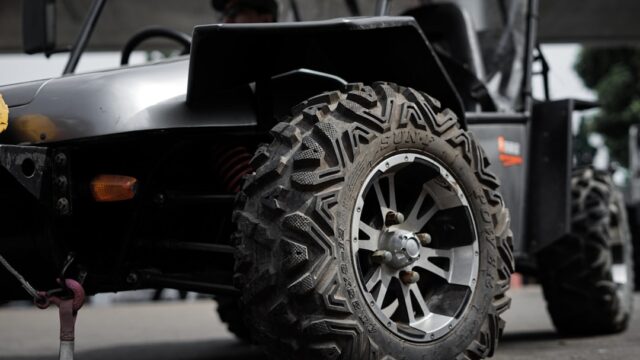

The hubs must match your wheels’ bolt pattern, or you will need new wheels. Many recreational karts use a common 4-bolt pattern, but there is real variation, so measure your wheels or check the wheel listing.

4. Sprocket hub and chain size

Confirm the sprocket hub’s bolt pattern matches the sprocket you plan to run, and that the sprocket suits your chain size, most often #35 or #40 on recreational karts. Our go-kart sprocket hub guide explains the common patterns.

5. Brake compatibility

Check whether the kit’s brake hub suits a disc or a drum, and that the disc or drum bolt pattern matches your brake. If you are upgrading the brake at the same time, buy them together; a matched go-kart brake kit makes this easier.

6. Number of bearings

Two bearings work on narrow, low-power karts. A third, center bearing reduces axle flex on wide frames and with bigger engines.

How to Install a Go-Kart Axle Kit

Installing an axle kit is a manageable DIY job with basic hand tools, a straightedge, a tape measure, and thread locker. The kit’s instructions take priority, but the general order is:

  1. Support the frame on stands with the rear wheels off the ground, and remove the old wheels, chain, brake, and axle.
  2. Mount the bearing hangers loosely so they can still move slightly for alignment. If the frame needs new hangers welded on, measure carefully so the bearings are square to the frame centerline.
  3. Dry-fit the axle with bearings only and confirm it spins freely by hand. Tighten the hangers progressively while spinning the shaft; if it starts to bind, a hanger is out of line.
  4. Slide on the sprocket hub and brake hub with their keys in the correct positions. Order matters, since components between the bearings cannot be added later without removing the axle.
  5. Center the axle so equal lengths protrude on each side, then lock the bearing collars or set screws.
  6. Align the sprocket with the engine, clutch, or jackshaft sprocket using a straightedge laid across both faces, then lock the sprocket hub.
  7. Fit the brake disc or drum and position its hub so the caliper or band sits squarely, then lock it.
  8. Install the wheel hubs with their keys and retaining hardware, then mount the wheels.
  9. Fit and tension the chain, then spin the axle by hand and look for wobble, rubbing, or tight spots.

Use blue thread locker on set screws unless the kit says otherwise, and recheck everything after the first short drive, since new parts settle. Keys must fit snugly without being hammered in.

Common Installation Mistakes

  • Wrong component order: forgetting to slide the sprocket or brake hub on before the second bearing.
  • Misaligned bearings: leads to a stiff axle, premature bearing wear, and lost power.
  • Poor chain alignment: a major cause of thrown chains and fast sprocket wear.
  • Set screws on the wrong side of the key: where possible, a set screw should bear on the key or on a flat, not on a smooth round section, or it can slip.
  • Skipping the brake check: a hub that shifts can move the disc out of the caliper.

Maintenance After Installation

An axle kit needs little attention when it is installed well. Check set screws, collars, and hub hardware before each outing; vibration loosens them. Spin the axle by hand periodically and listen for rough bearings. Most kit bearings are sealed and are replaced rather than regreased; if yours have grease fittings, follow the maker’s interval. After crashes or hard landings, check the axle for straightness and the keyways for cracks. See our go-kart axle bearing guide for bearing replacement.

Pros and Cons of Buying a Complete Kit

A matched kit is the quickest route to a reliable rear end, but it is not always the cheapest or most flexible choice.

Pros

  • All bores, keys, and bearings are matched to one shaft
  • Faster than sourcing every part separately
  • Often cheaper than buying the same parts individually
  • Good starting point for first-time builders

Cons

  • Wheel or sprocket patterns may not match parts you already own
  • Contents vary widely between sellers
  • Long axles can be expensive to ship
  • Racing kits are usually tied to one chassis brand

Frequently Asked Questions

What comes in a go-kart axle kit?
A complete kit usually includes the axle shaft, two or three bearings, bearing hangers, wheel hubs, a sprocket hub, a brake hub, and the keys, collars, and set screws. Cheaper kits may include only the shaft and bearings, so check the parts list.

What size axle kit do I need for my go-kart?
Match the diameter to your frame bearing mounts and the length to your desired rear track width. Most recreational karts use 1 inch, while heavier off-road builds and bigger engines benefit from 1-1/4 inch.

How do I measure for a go-kart axle kit?
Measure between the outer faces of the bearing mounts, then add the width of each wheel hub and the room you want for track adjustment. Also measure your wheel bolt pattern, sprocket pattern, and brake hub pattern.

How much does a go-kart axle kit cost?
Recreational complete kits typically run about $90 to $200, heavy-duty 1-1/4 inch kits about $150 to $350, and racing axle kits more. Shaft and bearing only kits are cheaper but need hubs added.

Can I install a go-kart axle kit myself?
Yes. With basic hand tools, a straightedge, and thread locker, most builders can install one in an afternoon. The critical steps are bearing alignment, component order, and sprocket alignment.

Do I need two or three bearings?
Two are fine on narrow, low-power karts. A third center bearing reduces axle flex and is recommended for wide frames, heavy karts, and larger engines.

Final Thoughts

A go-kart axle kit takes the guesswork out of building a rear end, provided you measure first. Confirm diameter, length, wheel pattern, sprocket pattern, and brake fit, then install with careful alignment. For the rest of the drivetrain and frame, start at our go-kart engine hub and go-kart frame guide, and when you are ready to buy, compare options in the best go-kart axle kit roundup.
